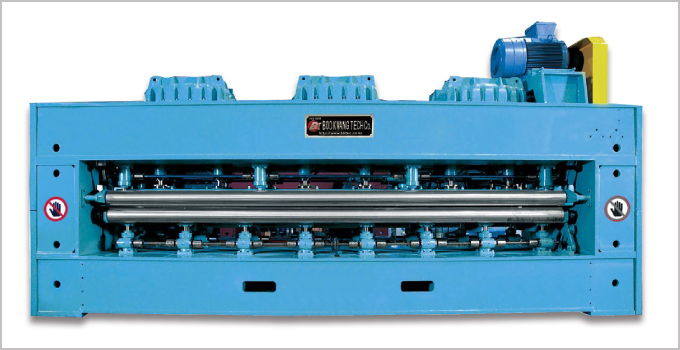

 HOME > PRODUCT INFO > Neelde Punching M/C < BNOD-4300(UR)
|
|
|
 |
| |
 |
|
| |
 |
| |
|
| |
 |
This model is for the final process of goods. |
|
Two sets of machines mounted on one body frame to increase product density. |
|
With one machine, it shows two machines performance result. |
|
(High working efficiency and quality improvement) |
|
Two shafts rotate reverse direction to minimize vibration and high speed rotation. |
|
|
|
|
| |
|
|
| |
 |
| |
|
| |
| Working width |
2,800 ~ 4,300mm |
| Stroke |
30mm |
| RPM |
1,200 |
| No of needles |
12,000 /15,000 EA/㎡ |
| Electric power |
Inverter 45kw - 1Set, Inverter 2.2kw - 1Set, Inverter 1.5kw - 1Set
Motor 45kw - 1Set, G/M 2.2kw - 1Set, G/M 1.5kw - 1Set, G/M 0.75kw - 2Set
Oil Pump 0.4kw - 3Set, Oil Color - 3Set |
| Main product |
For geotextile, embedding materials for automobiles, clothes, carpets, padding, synthetic leather. |
|
| |
■ Specifications of this machine can be changed for quality improvement. |
|
|
|
|
|
