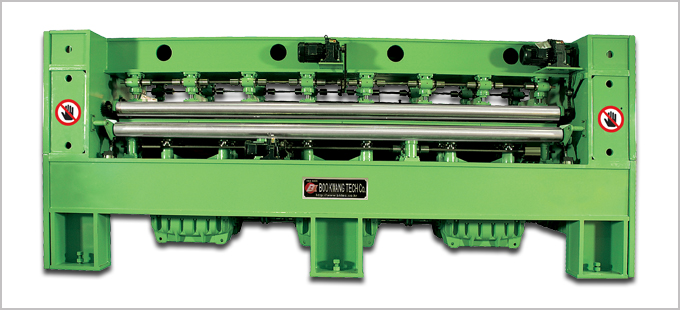

HOME > PRODUCT INFO > Neelde Punching M/C < BNOD-4300(OR)
|
|
|
![bnod-2800](image/product_sub_title04.gif) |
|
![](image/product_img04.jpg) |
|
|
![µµ¸é](image/draw.gif) |
![µµ¸é](image/features.gif) |
|
|
![](image/draw_img08.jpg) |
![](image/dot.gif) |
Two sets of machines are attached on a frame for the effect of |
|
concurrent work by the machines and for auqlity omprovement. |
![](image/dot.gif) |
The machines takes smaller space and are mounted from bottom |
|
to upside. |
![](image/dot.gif) |
The purpose is balancing as well as vibration minimization and |
|
high-speed rotation. |
<< Click the image for a bigger picture. |
|
|
|
|
|
|
|
|
|
|
![»ç¾ç](image/spec.gif) |
|
|
|
Working width |
2,800 ~ 4,300mm |
Stroke |
30mm |
RPM |
1,200 |
No of needles |
10,000EA |
Electric power |
Inverter 45kw - 1Set, Inverter 2.2kw - 1Set, Inverter 1.5kw - 1Set
Motor 45kw - 1Set, G/M 2.2kw - 1Set, G/M 1.5kw - 1Set, G/M 0.75kw - 2Set
Oil Pump 0.75kw - 3Set, Oil Color - 3Set |
Main product |
For geotextile, embedding materials for automobiles, clothes, carpets, synthetic leather. |
|
|
¡á Specifications of this machine can be changed for quality improvement. |
|
|
|
|
|
