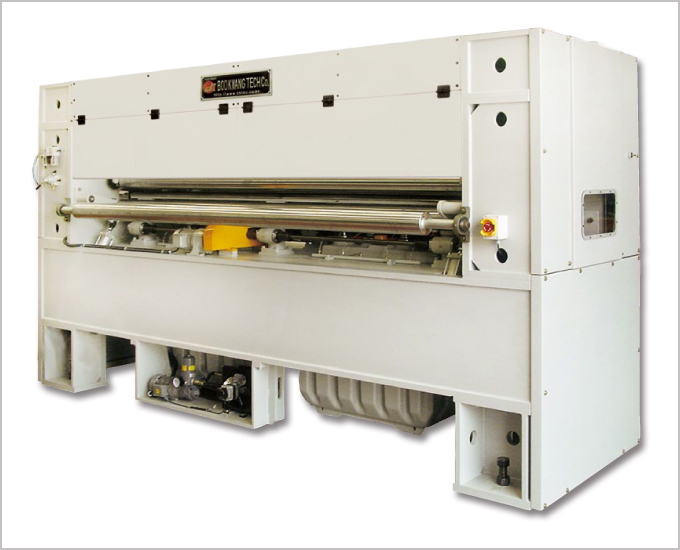

HOME > PRODUCT INFO > Neelde Punching M/C < BNOS-2800(OR)
|
|
|
![bnod-2800](image/product_sub_title06.gif) |
|
![](image/product_img06.jpg) |
|
|
![µµ¸é](image/draw.gif) |
![µµ¸é](image/features.gif) |
|
|
![](image/draw_img04.jpg) |
![](image/dot.gif) |
This Up-punching machine is developed for customer`s easy |
|
maintenance. |
![](image/dot.gif) |
Extremely reduces noise and vibration during high speed rotation
. |
![](image/dot.gif) |
It forcibly injects oil to minimize motion frictional heat and long-last effect |
|
of consumable parts of the machine. It is highly performing in long hour |
|
operation. |
|
|
<< Click the image for a bigger picture. |
|
|
|
|
|
|
|
|
![»ç¾ç](image/spec.gif) |
|
|
|
Working width |
2,800mm |
3,200mm |
3,600mm |
4,200mm |
5,500mm |
Stroke |
30mm |
30mm |
30mm |
30mm |
30mm |
RPM |
1,500 |
1,300 |
1,200 |
1,100 |
1,000 |
No of needles |
5,000EA/M |
5,000EA/M |
5,000EA/M |
5,000EA/M |
5,000EA/M |
Electric power |
Inverter 15kw - 1Set, Inverter 1.5kw - 1Set, Inverter 0.75kw - 1Set
Motor 15kw - 1Set, G/M 1.5kw - 1Set, G/M 0.75kw - 2Set, G/M 0.4kw - 1Set
Oil Pump 0.4kw - 2Set, Oil Color- 2Set (It's electric power applied an 2,800 spec..) |
Main product |
for clother, embedding materials for automobiles, geotetile, air fillter, carpets, and synthetic leather. |
|
|
¡á Specifications of this machine can be changed for quality improvement. |
|
|
|
|
|
