bnod-2800


도면 도면

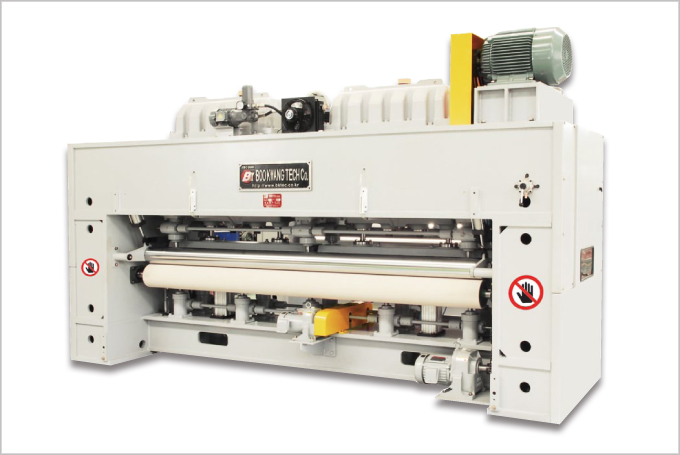

This is a newly developed machine suitable for thick fabric production.
  The oil cooler helps to maintain temperature level of oil which is produced
  inside of oil boxes. This cooling operation minimizes metal expansion
  fromheat generation.
Due to its special technology of oil boxes, it minimizes the abrasion of
  pistons and helps to perform long hour production.






<< Click the image for a bigger picture.



  사양


Working width 2,800mm 3,200mm 3,600mm 4,500mm
Stroke 50mm 50mm 50mm 50mm
RPM 1,200 1,000 1,000 1,000
No of needles 5,000EA/㎡ 5,000EA/㎡ 5,000EA/㎡ 5,000EA/㎡
Electric power Inverter 15kw - 1Set, Inverter 1.5kw - 1Set, Inverter 0.75kw - 1Set
Motor 15kw - 1Set, G/M 1.5kw - 1Set, G/M 0.75kw - 2Set, G/M 0.4kw - 1Set
Oil Pump 0.4kw - 2Set, Oil Color- 2Set (It's electric power applied an 2,800 spec..)
Main product For clother, embedding clothers forautomobiles, carpets, floorings, and, synthetic leather.
bnod-2800


도면

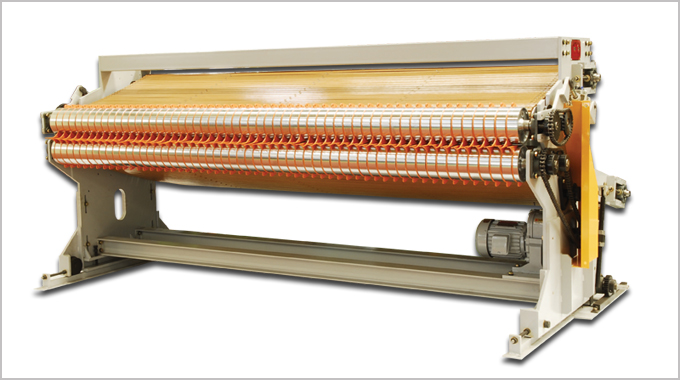

Slip phenomenon occurs at the entrance of a pre-punching device during thick web production.
  To prevent this slipping of thick web, this machine compresses web and easily supplies to the entrance of
  of the punching machine.

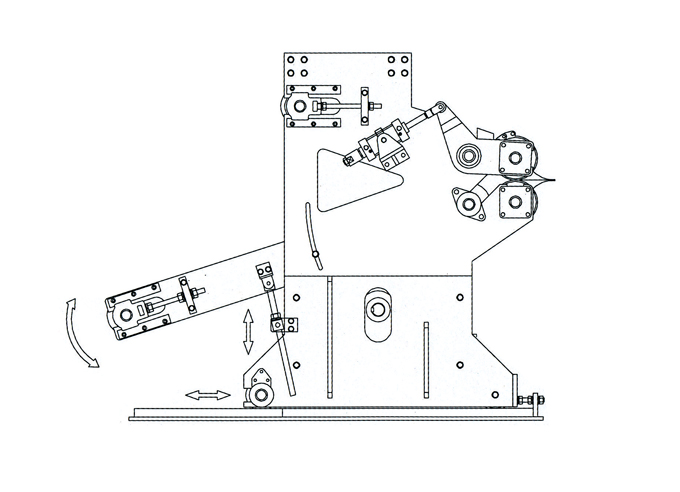

도면



  사양


Model BKCF 2800
Length(mm) 1672
Width(mm) 3160
height(mm) 1362
Power(kw) 4PX1.5kw - 1Set
Weight 1.5Ton
  ■ Specifications of this machine can be changed for quality improvement.
