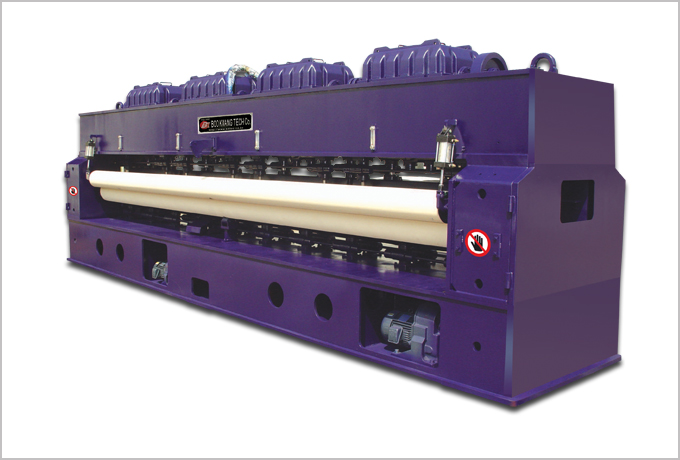

HOME > PRODUCT INFO > Neelde Punching M/C < BNOS-6300
|
|
|
![bnod-2800](image/product_sub_title05.gif) |
|
![](image/product_img05.jpg) |
|
|
![µµ¸é](image/draw.gif) |
![µµ¸é](image/features.gif) |
|
|
![](image/draw_img05.jpg) |
![](image/dot.gif) |
A highly stable frame is extremely reducing vibration and noise during |
|
operation. The oil boxes help easy maintenance. |
![](image/dot.gif) |
In consideration of crank ram motion, these oil boxes were developed to |
|
minimize heat generation, thus reducing thermal load during high speed |
|
rotation. |
![](image/dot.gif) |
With circulation cooling system of each oil box, it accurately supplies |
|
lubricate oil to necessary part at the constant hydraulic pressure. |
<< Click the image for a bigger picture.
|
|
|
|
|
|
|
|
|
|
|
![»ç¾ç](image/spec.gif) |
|
|
|
Working width |
5,600mm |
7,000mm |
8,400mm |
Stroke |
50mm |
40mm |
40mm |
RPM |
1,000 |
900 |
900 |
No of needles |
4,000EA/M |
4,000EA/M |
4,000EA/M |
Electric power |
Main Motor 37kw-1Set, 2.2kw-1Set,1.5kw-1Set,
0.75kw-2Set, Oil Pump 0.4kw-4Set, Oil Color-4Set |
Main Motor 45kw-1Set, 2.2kw-1Set,1.5kw-1Set,
0.75kw-2Set, Oil Pump 0.4kw-5Set, Oil Color-5Set |
Main Motor 55kw-1Set, 2.2kw-1Set,1.5kw-2Set,
0.75kw-1Set, Oil Pump 0.4kw-6Set, Oil Color-6Set |
Main product |
For geotextile, bentonite, mat ... |
|
|
¡á Specifications of this machine can be changed for quality improvement. |
|
|
|
|
|
