Needle Punching M/C

HOME > PRODUCT INFO >Web Drafter

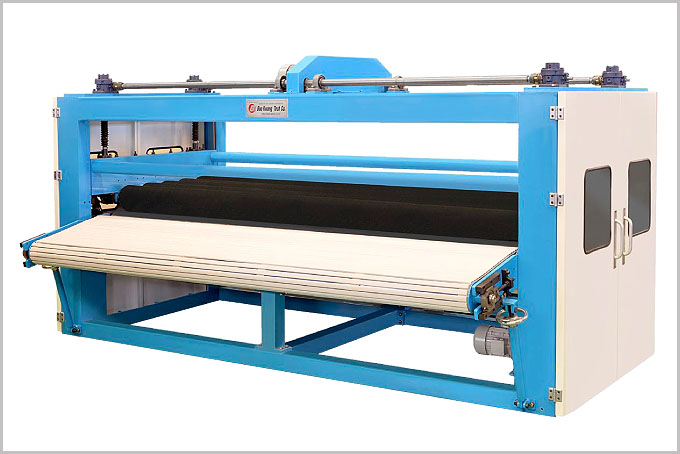

bnod-2800

Features

ㆍ Web drafter adjusts the velocity ratio of each draft's roller and raises tensile force by controlling the angle of MD:CD of web. Also, it smoothens the surface very well and maximizes the quality of product. The inverter automatically controls each of the roller velocity ratio which indicates digitally so that it can easily adjust the ratio of the draft. This machine is designed with up&down and the loading of product is easy.

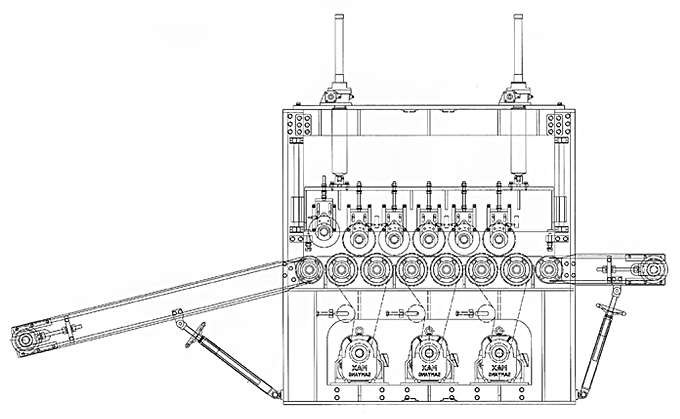

Lay out

Lay out
Specification

Model Size Electric power
BKDR-3000 Ø165 × L3,000 Draft 0.75kw - 3~4 Set
Up&Down 0.75kw - 1Set
BKDR-4500 Ø165 × L4,500 Draft 0.75kw - 3~4 Set
Up&Down 0.75kw - 1Set
■ Specifications of this machine can be changed for quality improvement.
