 HOME > PRODUCT INFO > Needle Punching M/C > BNOS-2800 (OR)
|
|
|
 |
| |
 |
|
| |
 |
|
| |
|
 |

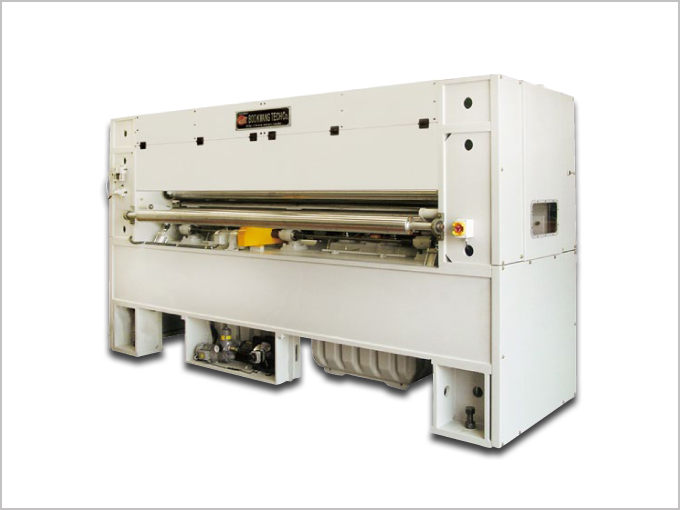

This Up-punching machine is developed for customer's easy maintenance |
|
Extremely reduces noise and vibration during high speed rotation |
|
It forcibly injects oil to minimize motion frictional heat and long-last effect of consumable parts of the machine. |
|
It is highly performing in long hour operation |
| |
|
|
|
 |
|
| |
|
 |
|
| |
|
|
|
|
|
| |
 |
| |
|
| |
| Working width |
Stroke |
RPM |
No of Needles |
| 2,800mm |
30mm |
1,500 |
6,000 / 7,500 EA/㎡ |
| 3,200mm |
30mm |
1,300 |
6,000 / 7,500 EA/㎡ |
| 3,600mm |
30mm |
1,200 |
6,000 / 7,500 EA/㎡ |
| 4,200mm |
30mm |
1,100 |
6,000 / 7,500 EA/㎡ |
| 5,500mm |
30mm |
1,000 |
6,000 / 7,500 EA/㎡ |
Electric
Power |
Inverter 15kw -1Set, Inverter 1.5kw -1Set, Inverter 0.75kw -1Set
Motor 15kw -1Set, G/M 1.5kw -1Set, G/M 0.75kw -2Set, G/M 0.4kw -1Set
Oil Pump 0.4kw -2Set, Oil Cooler -2Set (It’s electric power applied an 2,800 spec.) |
| Main Pruducts |
For clothes, embedding materials for automobiles, geotextile, air fillter, carpets, and synthetic leather. |
|
| |
■ Specifications of this machine can be changed for quality improvement. |
|
|
|
|
|
