HOME > PRODUCT INFO > Needle Punching M/C > BNOD-2800 (OR)
|
|
|
![bnod-2800](image/product_sub_title17.gif) |
|
![](image/product_img24.jpg) |
|
|
![](image/features.gif) |
|
|
|
![](image/dot.gif) |
In this model, two sets of machines mounted on one body frame. |
|
This model shows high performance result of two machines and quality improvement in one body frame. |
![](image/dot.gif) |
This model occupies less space. (Machines mounted from bottom and up) |
![](image/dot.gif) |
High performance of balancing, it minimizes vibration and easily rotate in high speed swing. |
|
|
|
|

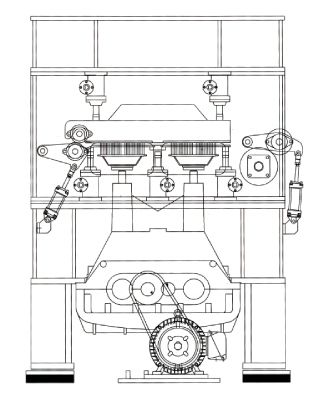

![](image/draw.gif) |
|
|
|
![](image/draw_img14.jpg) |
|
|
|
|
|
|
|
|
![»ç¾ç](image/spec.gif) |
|
|
|
Working width |
Stroke |
RPM |
No of Needles |
2,800~4,300mm |
30mm |
1,200 |
12,000 / 15000 EA/§³ |
Electric
Power |
Inverter 30kw -1Set, Inverter 1.5kw -1Set, Inverter 0.75kw -1Set
Motor 30kw -1Set, G/M 1.5kw -1Set, G/M 0.75kw -1Set, G/M 0.75kw -2Set
Oil Pump 0.4kw -2Set, Oil Cooler 0.2kw-2Set |
Main Pruducts |
For geotextile, embedding materials for automobiles, clothes, carpets, synthetic leather. |
|
|
¡á Specifications of this machine can be changed for quality improvement. |
|
|
|
|
|
